Packing & Logistics

Packaging

All automotive goods are provided in seaworthy packing to withstand rough voyage.

Procedure And Precoutions for cleaning:-

  • Clean the piece thoroughly with compressed air gun including the threaded hole.
  • Use only clean cloth for scrub the pc. And make sure the packing area also cleaned .
  • Contaminants AS PER JDS-G169,CLASS 6.6 Total part area = 0.009 m2
  • Maximum allowance of contaminants = 4.166 mg

Rust protection – Anty rust oil

Instruction for use anty rust oil:-

  • Make sure the anty rust is clean & Filtered before use.
  • Use neat and clean bucket for oiling.
  • Make sure that there is no contaminants on pcs after R.P.O. treatment.
  • Use hand gloves during dipping process and stacking process.
  • Change the oil before the oil get dusty.
  • Filter the oil frequently to saprate any dust or contaminent.
  • Change the R.P.O. after it gets blackish or as per frequency define.
  • Give 20 ~ 25 minutes to drainage the excessive oil from pcs.

Packing Specifications

Primary Packing Specifications

S. No Description Specification

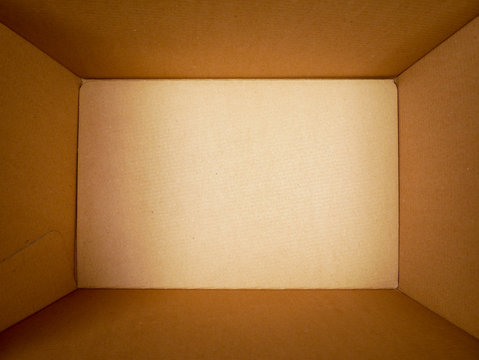

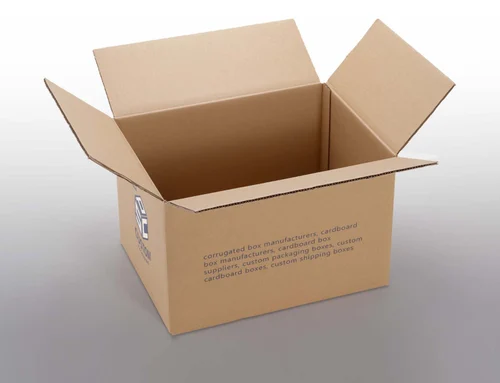

Corrugated Box
1 Size 14" × 10.25" × 3.375"
2 Ply Thickness 7 PLY
3 Bursting Strength 8 ~ 10+

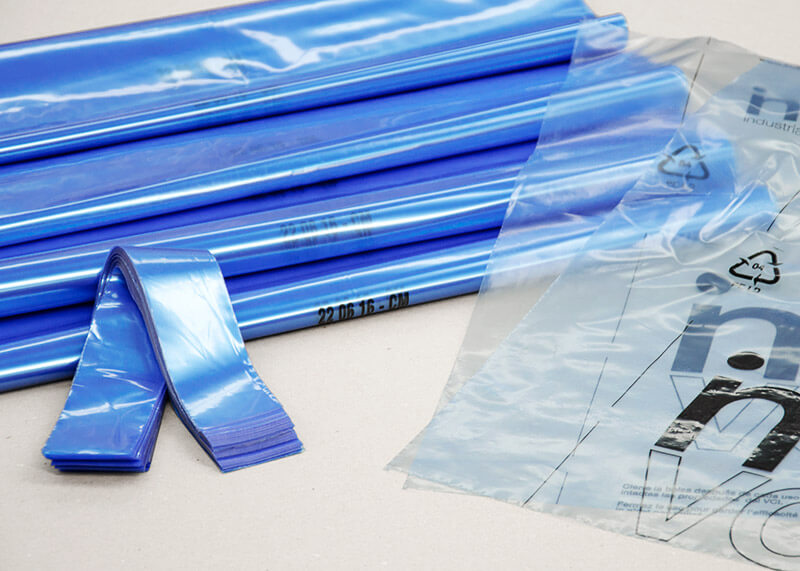

VCI Sheet
1 Quality V - CORR
2 Thickness 100 MICR.
3 Size 800 × 775mm

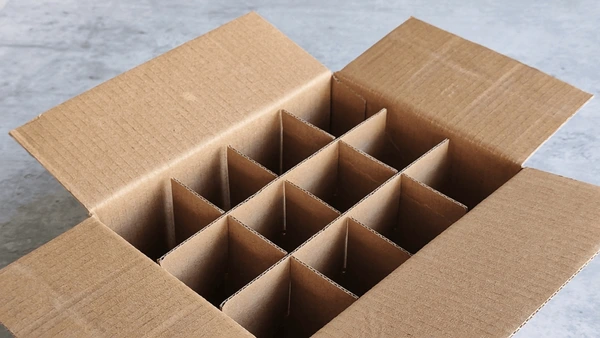

Separator
1 Ply Thickness 3 PLY
2 Size (1st) 13.50" × 2"
3 Size (2nd) 10.0" × 2"

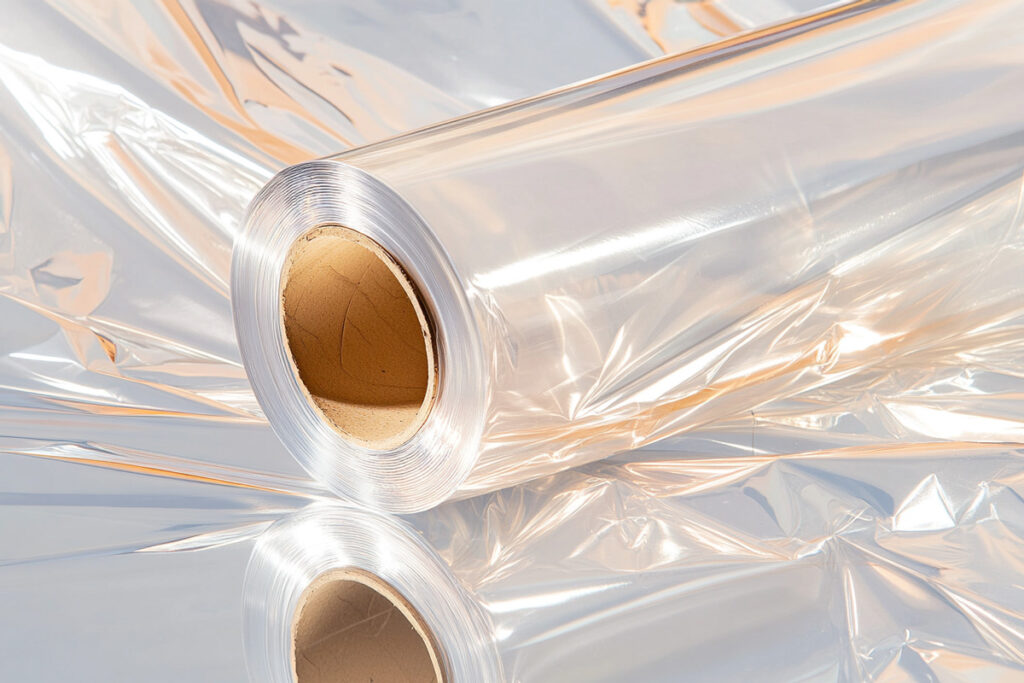

Polythin Film
1 Thickness 1.5 GAUGE
2 Size -

Procedure for Packing

Precautions of Packing

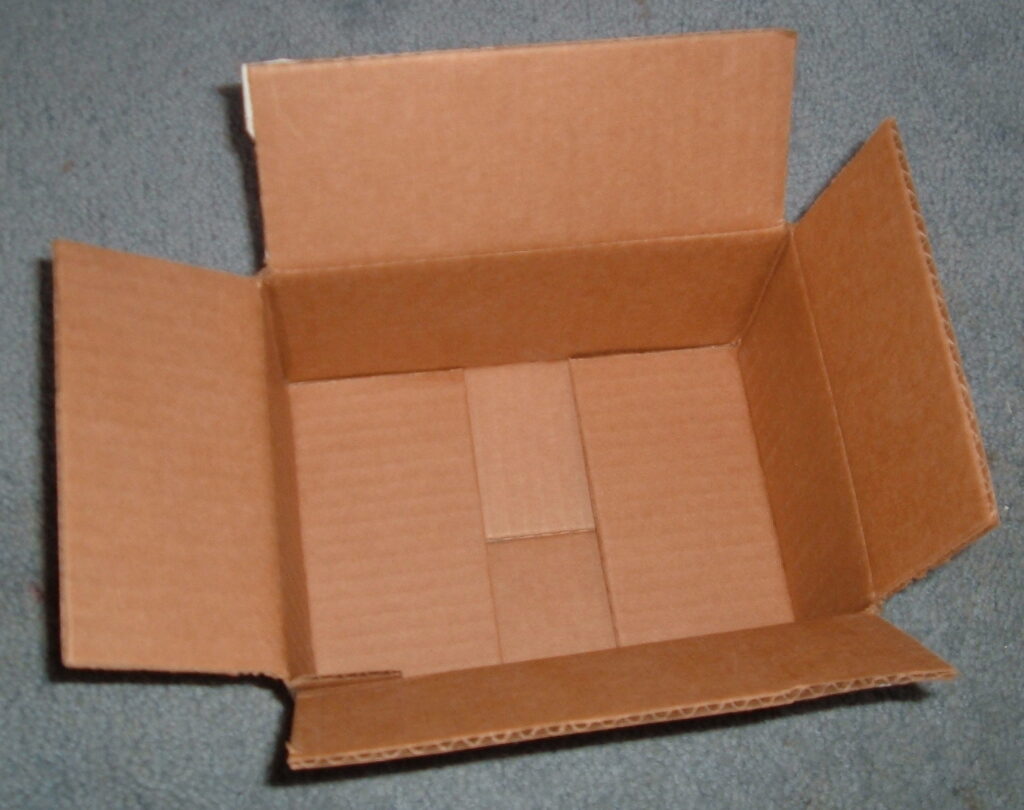

  • Take corrugated box and fold it to make box shape and tape to joint it.
  • Take VCI sheet & lay it into the box
  • Put seperator in the box over the VCI sheet.
  • Then take polythin film and fix into the seperator to form cavities for resting of componenets.
  • And then stack 48 pcs into this assembled box properly.
  • Use hand glowes during stacking of pcs into the box.
  • Fold/overlap the polythene and VCI sheet and tape it.
  • Close the top of the box and tape it finally.

Packing Specifications

Final Packing Specifications

S. No Description Specification

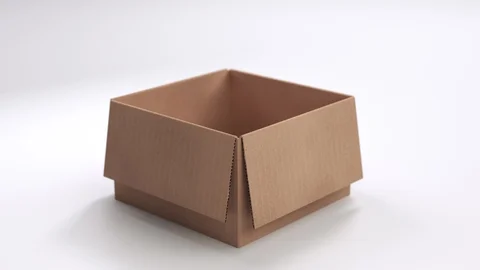

Outer Corrugated Box
1 Size 29" × 23" × 25.250"
2 Ply Thickness 9 PLY
3 Bursting Strength 30+
Vertical Inner of Box
1 Thickness 9 PLY
2 Size 28" × 24"
VCI Sheet
1 Quality V - CORR
2 Thickness 100 MICR.
3 Size 1300 × 850 mm Box Type
Wooden Pallet
1 Plastic Strips 4
2 Size 29" × 23"

Procedure for Packing

Precautions for final packing

  • Take outer box and fold it from one side and then tape well to make box shape
  • Stack the vetical inner in the outer corrugated box .
  • Then lay down the 3-D VCI (box type) in the outer box.
  • Then stack 24 inner packed boxes in the outer box.
  • And cover all boxes with VCI and then tape it finally.
  • Then fold the top side of the outer corrugated box and tape it finally.
  • Then take wooden pallet and stack outer box upon wooden pallet and the another upon outer box.
  • Then stripped this pallet from four sides tightenly.
  • Precautions of Packing
